Little Dust China Micron Powder Impact Hammer Mill Grinding Machine with Cyclone

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Shandong ALPA Powder Technology Co., Ltd.
[China]

Address
No.168, Wenhua Road, Anqiu,Weifang City, Shandong Province, China Qingdao Shandong
Phone
86-0532-15621439795
Contact name
Luanne Zhang

Quick Information

  • Brand Name: ALPA
  • Place of Origin: China
  • Model Number : CUM-F
  • Particel Size : D50:10-850um
  • Control : PLC control system

Description

Little Dust China Micron Powder Impact Hammer Mill Grinding Machine with Cyclone

CUM-F Hammer Mill

impact hammer mill / hammer mill machine / hammer mill / manufacturers hammer mill / hammer mill grinding / hammer mill price / hammer mill design / hammer mill with cyclone / grinding hammer mill

Features and Advantages:

1.Available D50:10~850μm

2.Sieve hole size 0.2mm-3mm

3.Compact structure and small occupation. easy to disassemble and clean

4.Lower installation power, wide application, high cost-performance

5.Grinding is in closed system, low dust and noise, clean and environmentally friendly production process

6.PLC control system, easy operation


Working Principle:

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc.

At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.

The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.

Technical Parameters:

Parameters/specifications
160 250 360 500 630 800

Grinding Disc(mm) 150 250 350 500 600 720

Max. Rotation Speed(r/min) 12000 7500 5550 3850 3200 2800
Turbo Type F Power(kw) 3~4 5.5~7.5 11~15 18.5~30 30~45 37~75

Product Size(mesh) 20~325 20~325 20~325 20~325 20~325 20~325

Production Capacity(Kg/h) 5~50 15~200 25~500 30~1200 50~1800 60~2000

Grinding Disc(mm) 160 260 360 520 630 730

Max. Rotation Speed(r/min) 12000 7500 5550 3850 3200 2800
Pin Type P Power(kw) 4 7.5 15~22 37 45~55 55~75

Product Size(mesh) 20~325 20~325 20~325 20~325 20~325 20~325

Production Capacity(Kg/h) 20~200 35~1000 50~2000 75~3000 100~5000 200~10000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

                                                               WHO CHOOSE ALPA

                                           Common choice of many well-known companies

By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA.More than 3,000 customers have chosen us

                                       Shandong ALPA Powder Technology Co., Ltd.

                                          (abbreviation: ALPA / Equity Code: 171033)

         THE WORLD’S LEADING SUPPLIER OFULTRA-FINE POWDER SOLUTIONS

ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.


Q: What service do you supply?

A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.

2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.

3). We supply project engineering, automation engineering and civil engineering.

4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.

Q:How can I trust on your quality?

A: 1). All of the machine be tested successfully in Weifang workshop before shipment.

2). We supply one year warranty for all equipment and lifelong after-sales service.

3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.

4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.

Q:Does your company provide Engineers Abroad Service?

A: Sure, we provide it. And we can provide free training for on-site workers.

Q:How to train our staff about operation and maintenance?

A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.


Price

  • Delivery Port : qingdao

Packaging & Delivery

  • Packing :1
  • Packaging Size : 2 x 2 x 2  Meters
  • Package Weight : 1000  Kilograms
  • Delivery Lead Time : 50 days for OEM
  • Supply Ability : 1000sets/year

Product Image

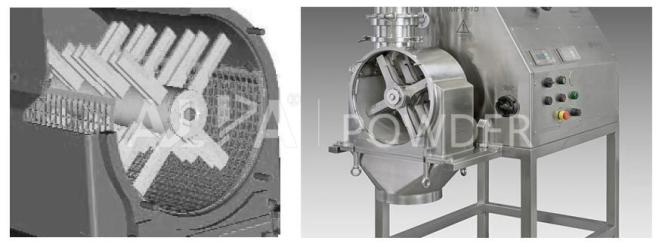

  • Little Dust China Micron Powder Impact Hammer Mill Grinding Machine with Cyclone image
