High Quality Ceramic Micronizer Spiral Jet Mill Pulverizer for Lithium Battery

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Shandong ALPA Powder Technology Co., Ltd.
[China]

Address
No.168, Wenhua Road, Anqiu,Weifang City, Shandong Province, China Qingdao Shandong
Phone
86-0532-15621439795
Contact name
Luanne Zhang

Quick Information

  • Brand Name: ALPA
  • Place of Origin: China
  • Model Number : MQP
  • Application : Pharmaceutical Industry
  • Particle Size : D50:1.5-45um
  • Control System : PLC Control

Description

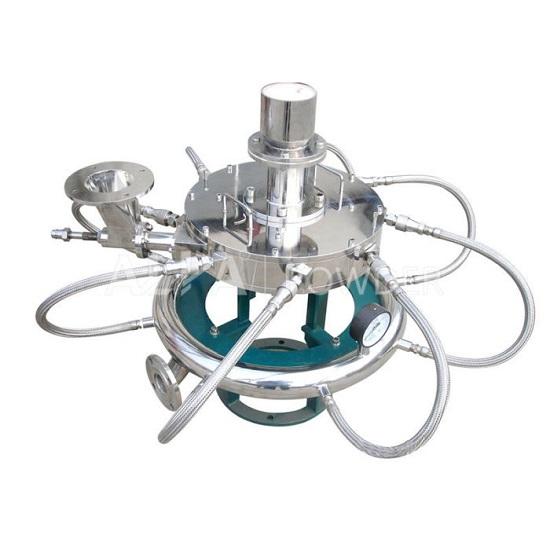

High Quality Ceramic Micronizer Spiral Jet Mill Pulverizer for Lithium Battery

jet mill / jet mill machine / pharmaceutical jet mill / jet mill for sale / lab scale jet mill / micronizer jet mill /

jet mill technology / new materials jet mill / automatic jet mill / graphite grinding jet mill / spiral jet mill /

Features and Advamtages:

1.Available particle size D50:1.5-45μm

2.CIP/SIP design is optional.

3.Meet GMP/FDA requirements.

4.The grinding process is completed by the collision of the materials themselves., Fully self-grinding, So The device is durable and the purity of products is high in contrast.

5.Key parts like inner liner, classifying wheel and nozzle are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product.

6.PLC control system, easy operation.


Working Principle:

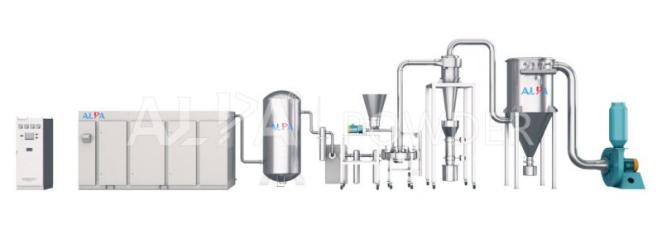

Pharmaceutical jet mill(Medical jet mill,Pharmacia jet mill,pharmacy jet mill) works with cyclone separator, dust collector and suction fan to form a complete grinding system.

Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.

Milled powder would go up to the classifying chamber by the air flow from suction fan.

The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.

Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

Technical Parameters:


Parameters/specifications MQP03 MQP06 MQP10 MQP20 MQP40 MQP60 MQP80
Feed Size(mm) <5 <5 <5 <5 <5 <5 <5
Product Size(d97:um) 8~150 8~150 8~150 8~150 10~150 10~150 10~150
Production Capacity(kg/h) 5~100 10~200 20~400 50~800 150~1500 300~2000 400~6000
Air consumption(m3/min) 3 6 10 20 40 60 80
Air Pressure(Mpa) 0.7~0.85 0.7~0.85 0.7~0.85 0.7~0.85 0.7~0.85 0.7~0.85 0.7~0.85
Installed Power(kw) 26~37 47~68 68~106 145~184 276~310 402~427 520~600

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

                                        Shandong ALPA Powder Technology Co., Ltd.

                                         (abbreviation: ALPA / Equity Code: 171033)

      THE WORLD’S LEADING SUPPLIER OFULTRA-FINE POWDER SOLUTIONSALPA

was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.



Price

  • Delivery Port : qingdao

Packaging & Delivery

  • Packing :1
  • Packaging Size : 2 x 2 x 2  Meters
  • Package Weight : 1000  Kilograms
  • Delivery Lead Time : 50 days for OEM
  • Supply Ability : 1000sets/year
